High-speed Crescent Former Tissue Paper Machine

• June 18, 2020
• SALE Machinery China
• Share

Product Description

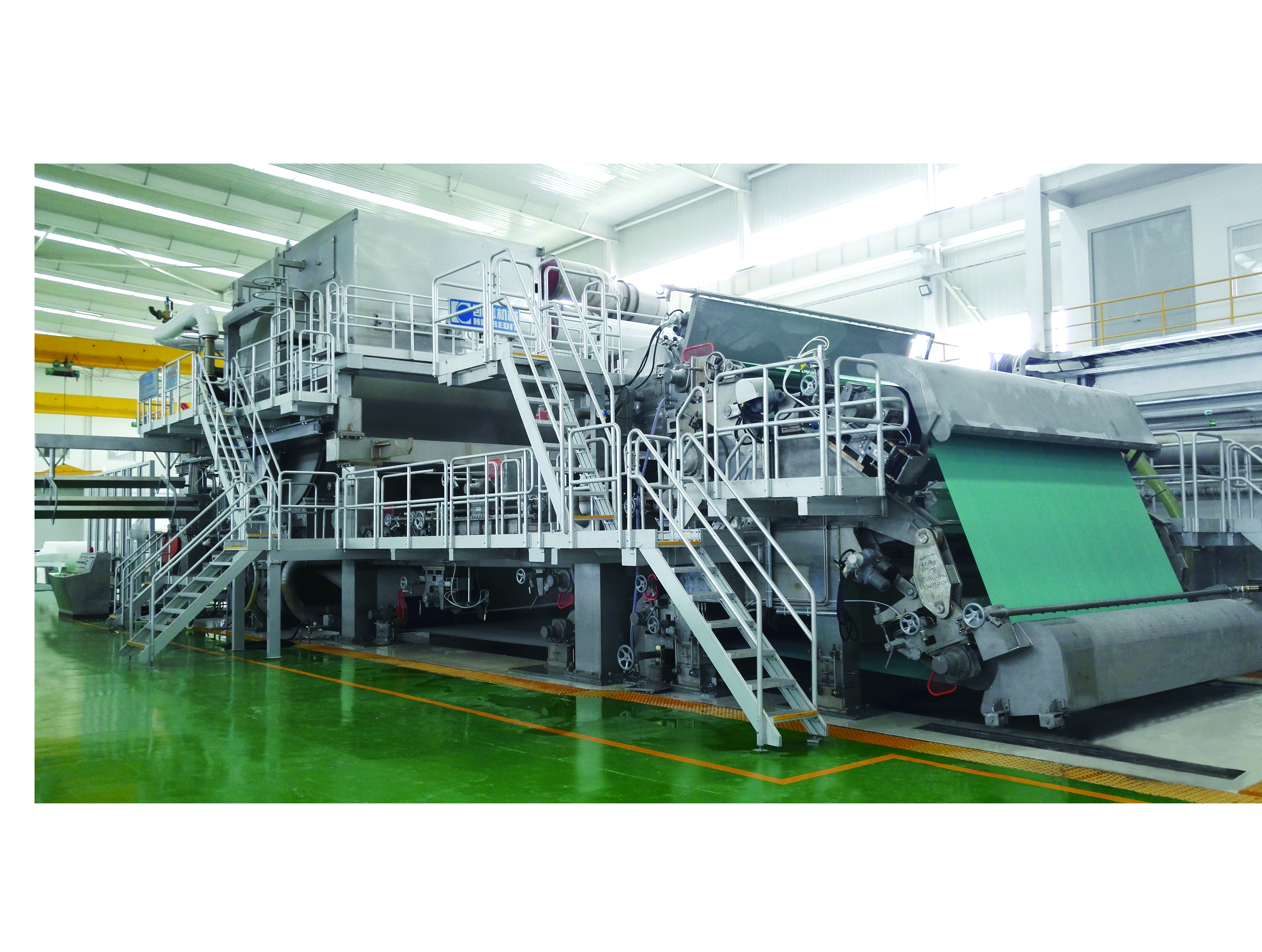

Crescent Former High-speed Tissue Machine mainly consists of hydraulic headbox, former, suction press roll, Yankee dryer, high-speed hot air hood, and pope reel and so on.

Technical Advantages

■Hydraulic headbox is adopted. Precision designed mixing chamber and rectifier section ensure excellent fiber orientation and formation so as to get better tissue quality；

■ Specially designed water collecting tray for the Crescent Former reduce the air entrainment into white water to the minimum；

■In wire section, the wire and felt are changed with cantilever beam. It is easy to operate and save time so that the production efficiency is improved.

■Position adjustment of breast roll is power-operated in order to choose the optimal jet impingement while machine is running；

■Press rolls of different diameter will be used according to different raw materials, which ensure dryness along with the best bulk；

■Efficient design of tail transfer from creping doctor to the reel performs also web stabilization；

■The pope reel is provided with reel spools storage magazine and reel spool automatic feeding and it performs the desired jumbo roll hardness；

Technical Data

Trimmed Width:  2660~5600mm

Operating Speed:  1200~1800m/min

Basis Weight:    13~42g/m2
