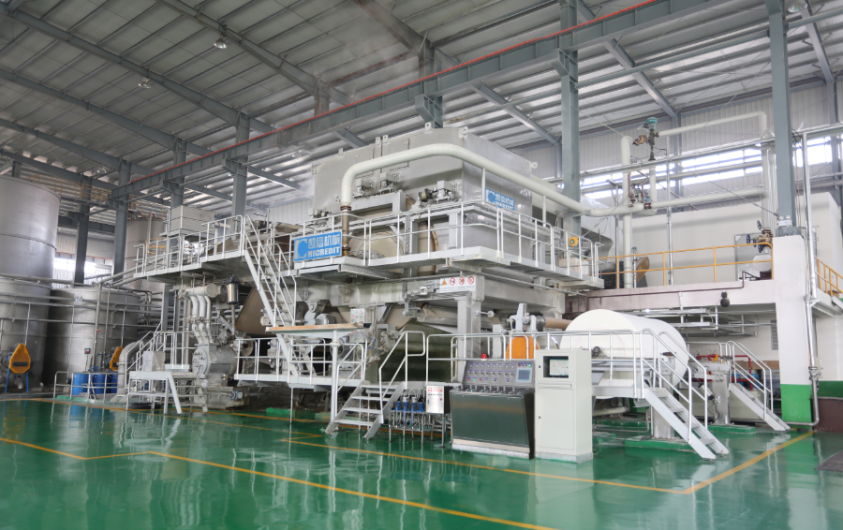

Suction Cylinder Tissue Paper Machine

• June 17, 2020
• SALE Machinery China
• Share

Product Description

Suction Cylinder Tissue Paper Machine is manufactured by the company successfully. It is ideal tissue paper producing device with its features of concise and reasonable structure, small area occupation, high pulp adaptability, high efficiency, energy saving and high quality.

Technical Advantages

■Hydraulic headbox; dispersant agent built-in system; high level engineering and precision manufacturing provide good formation and accurate basis weight profile in cross direction.

■It adopts suction cylinder forming in wet end. Different sizes of suction cylinders are used according to different materials, which ensure the dewatering area and the dryness out of wire. The dewatering is softer.

■There is a special suction press in press section，ensuring the dryness and especially ensuring the excellent bulk;

■Advanced technology of steam & condensate system, hot air and heat recovery system are adopted and special shaped air nozzles will considerably increase the air velocity, so the steam consumption per ton will be reduced.

■The machine operation is fully controlled by DCS, assuring a stable and efficient production.

Technical Data

Trimmed Width:     2660~5600mm

Operating Speed:   600~1200m/min

Basis Weight:          13~42g/m2
